Technical Parameters

-Temperature Parameters
Model	TAIPAN433
Chamber Size	*400×300×300mm(DWH)*
Loading Capacity	100 Kg
Temperature Control Zone	One zone temperature control
Heating Power	45KVA
Maximum Temperature	1350℃
Working Temperature	1200℃
Temperature Control Accuracy	±1℃
Temperature Uniformity	≤±5℃ (5 points temperature measurement in working area, 650-1150℃, according to national standard)

-Vacuum Parameters
Ultimate Vacuum	≤6×10^-1Pa（Empty Furnace/Cold State/Clean）
Working Vacuum	≤5 Pa
Pressure Rise Rate	≤0.67Pa/h
Air Cooling Pressure	＜6 bar
Vacuum Pumping Speed	pump from atmospheric pressure to 5 Pa≤30min
Partial Pressure Range	10Pa--200Pa

-Process Advantages

Flexible control mode, man-machine interface, stable operation
Low maintenance cost of heating element
Intelligent and safe, green and environmentally friendly, no open flame, no oily smoke
Linkage and interlock protection and alarm system, effectively protecting the safety of personnel and equipment
360°circular layout of heating elements, modular furnace design, to ensure uniform heating to the greatest extent and improve heating efficiency
Environmental protection, cleanness, safety, no smoke, no open flame, no explosion hazard, low heat dissipation from the cold furnace wall
The unique design of air-quenching air-cooling system ensures the uniformity and rapidity of cooling, and greatly reduces the deformation of the workpiece

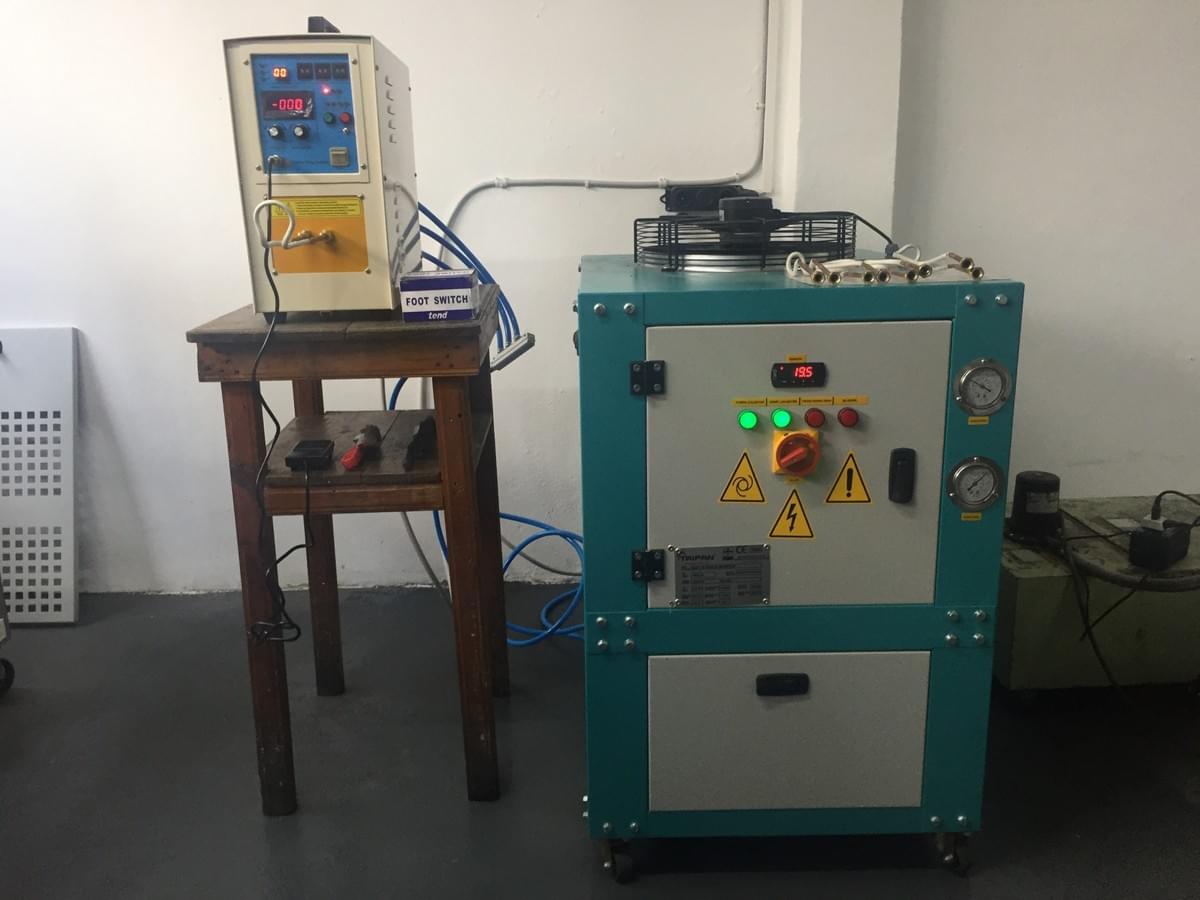

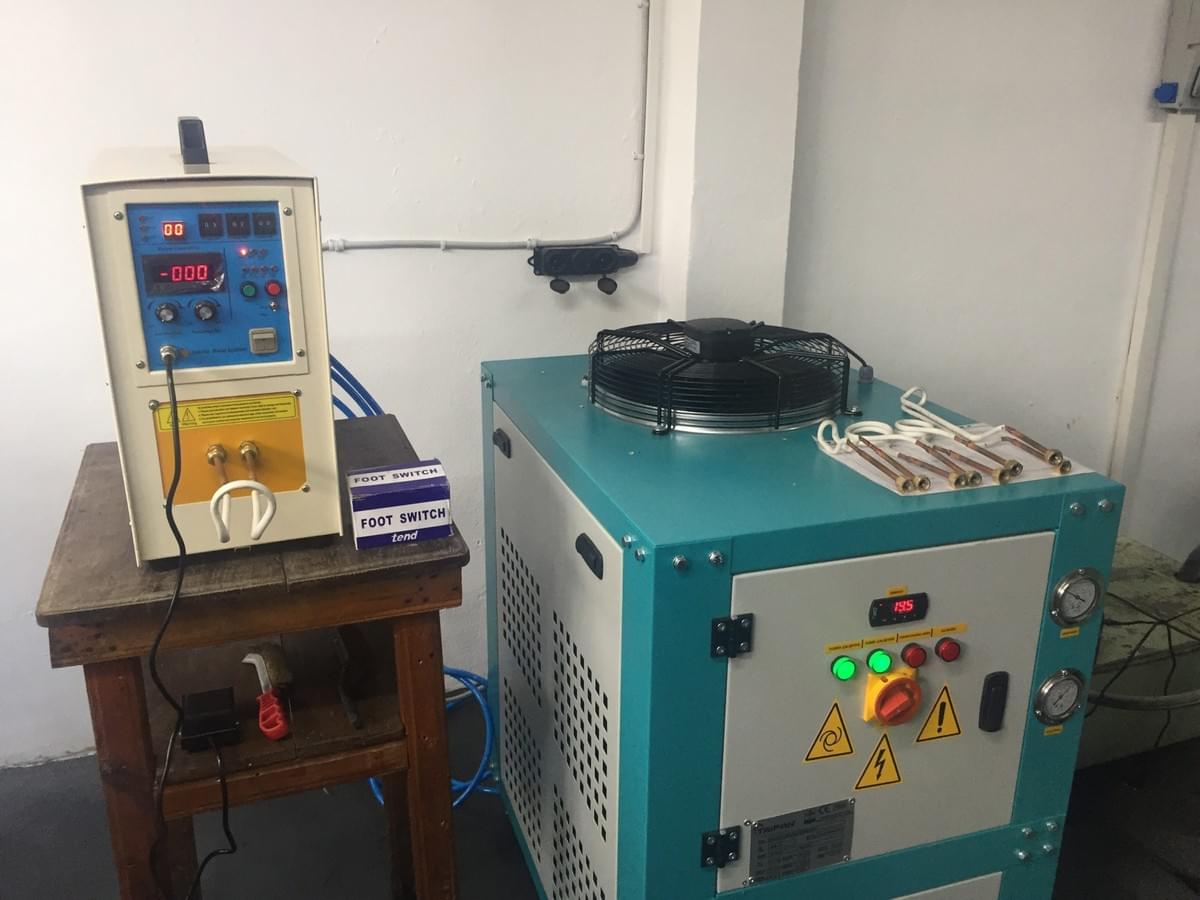

Induction Brazing for Cutting Tools
